Description

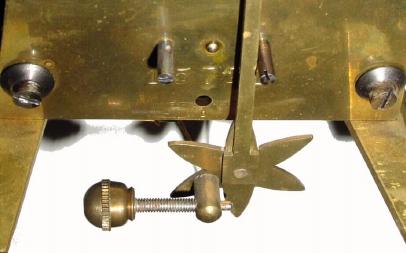

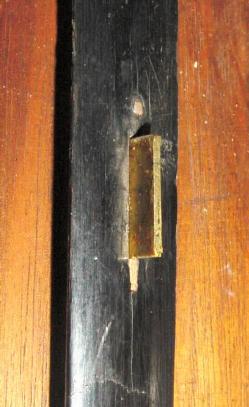

But the interesting things about this clock are the crutch and pendulum, which are untouched and operate in a similar fashion to the Waltham Detached gravity escapement earlier in the sale. The crutch assembly rides on one side of a little plate sticking out from the pendulum rod, and beat is set by turning the same thumb screw that transmits the impulse. Gravity alone moves the crutch in one direction. This is the first time we have seen this arrangement in something other than a precision regulator. If you can deal with restoring the case, you will have a clock worthy of comment. You will also need a different pulley, a shorter suspension spring, and a new rear case hanger. Height 43 inches
Record courtesy of R.O. Schmitt Fine Arts
